| Operating system: |
Linux. |
| Number of analogue video inputs: |
4 BNC. |
| Number of analogue audio inputs: |
1 RCA. |
| Supported analogue formats: |
CVI, CVBS, HD-TVI, AHD. |
| IP video input: |
up to 4 IP channels with analogue replacement. |
| Audio channels: |
up to 4 audio channels |
| Resolution/capture/display/recording speed of analog cameras: |
up to 1080N (960x1080) at 25 fps. |
| Resolution/capture and recording speeds of the IP cameras: |
First stream resolution up to 2 megapixels at 25 fps.Second stream resolution - no more than 640x480. In the absence of the second stream, the resolution of the first stream is no more than 640x480. |
| Resolution/display speed of IP cameras: |
up to 2 megapixels at 25 fps. |
| Supported video codecs: |
H.265, H.264. |
| Supported audio codecs: |
all popular codecs. |
| Supported protocols: |
ONVIF, HTTP, RTSP, Devline, TCP/UDP, DDNS, SMTP, FTP, SMB. |
| Supported IP-cameras list: |
159 different manufacturers |
|
| Video output: |
1xHDMI or 1xVGA (1280х1024). |
| Audio output: |
1xRCA / HDMI. |
| Network interface: |
100 Mbps |
| Input bandwidth: |
up to 32 Mbps |
| Output bandwidth: |
up to 64 Mbps |
| Other connectors: |
2хUSB2.0. |
|
| Service support: |
Line Cloud, Line.Retransmitter, TURN. |
| Recording mode: |
First and second stream are set up individually, by detection, by schedule, always, by event. |
| Archive analytics: |
supported. |
| Number of remote workplaces: |
not limited by the software |
| Mobile clients: |
iOS, Android. |
|
| Hard drives: |
1 HDD 3.5" SATA up to 12TB (not included). |
| Operating temperature range: |
0…+55 °С. |
| Power supply: |
12 V / 2 А / DC. |
| Power consumption: |
up to 24 W. |
| Layout: |
desk. |

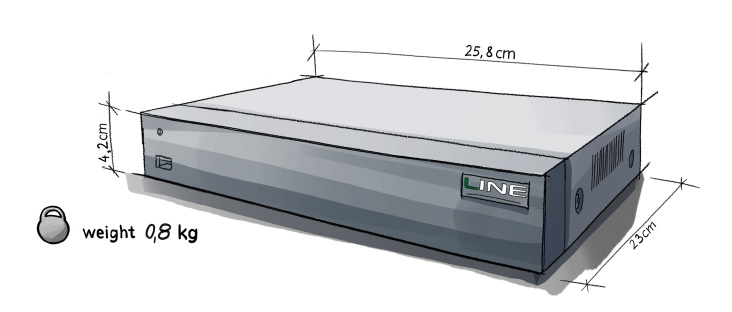

| Dimensions: |
42x258x230 mm. |
| Weight: |
0,8 kg. |
| Guarantee: |
3 years. |
